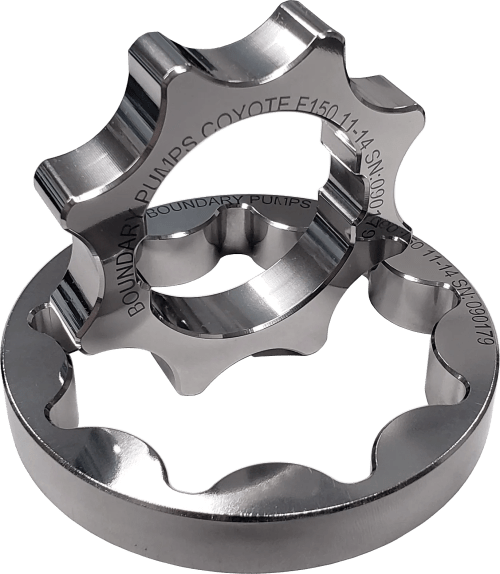

Ford Coyote Oil Pump Gears

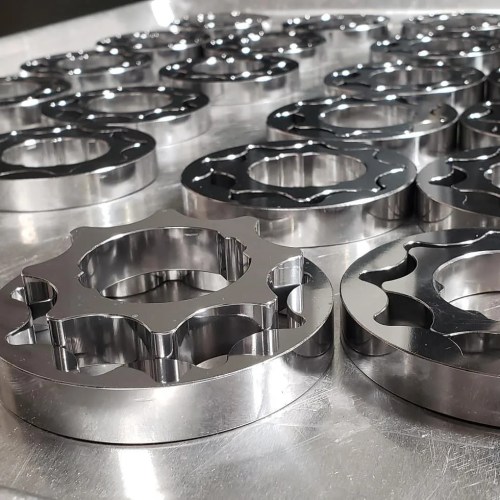

Boundary oil pump gears are 100% manufactured in our Dallas, Texas production facility. We start by quenching our chromoly billets from extreme heat and then temper it to a tough indestructible core. After machining, we apply our ColdFlow finishing process and complete it to a Mirror Finish. What does all this give you? It gives you a pump with stability over 9000 RPM, proven over 2000whp, with higher efficiency, less friction, and backed by one of the industry’s best warranties.

Oil Pump Gear Features

• Mirror Finished and Surface Hardened
• Surface Ground gears for the ultimate in fitment and performance
• Indestructible chromoly core
• Inner and outer gear machined in matched sets
• Our own race-inspired gerotor design for flow and strength
• Each set hand, machine, and hardness inspected with Blueprinting Report

Part Number CM-OPG-Mustang Fits:

• Mustang 2011 – UP 5.0L 5.2L V8
• F150 2015-2017 5.0L V8

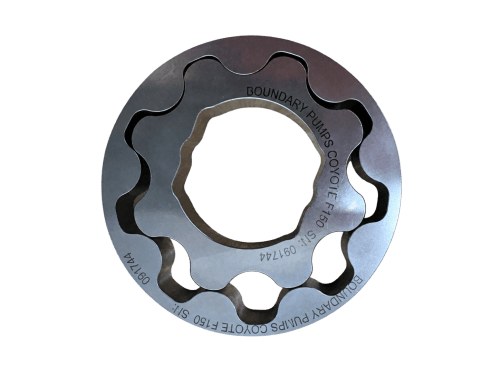

Part Number CM-OPG-F150 Fits:

• Ford Coyote V8 F150 2011-2014 and F150 2018-2020
• *Note* The Ford F150 2021+ are belt driven

IMPORTANT INSTALLATION NOTE – GEARSET ORIENTATION

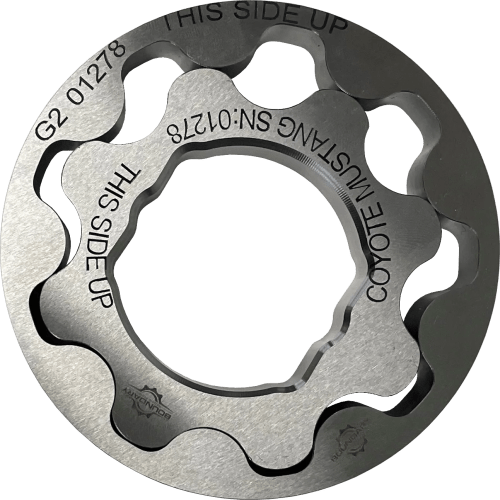

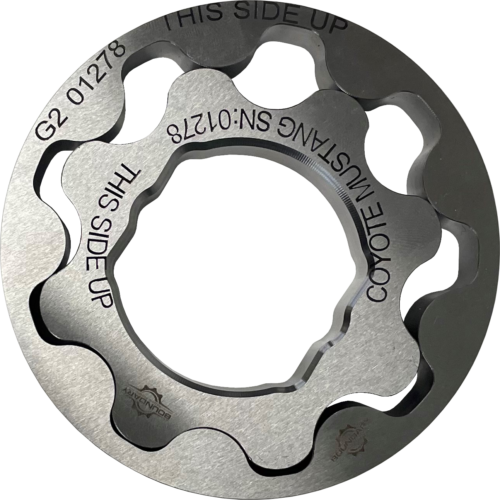

The gearset is etched with “THIS SIDE UP” to indicate the correct installation orientation.

When installing the gearset into the oil pump housing, the etched lettering must face outward, toward you and the backplate.

Once installed, the etched side of the gearset should face the backplate when it is secured to the housing.

Do not install the gearset with the etched lettering facing down into the pump housing.
