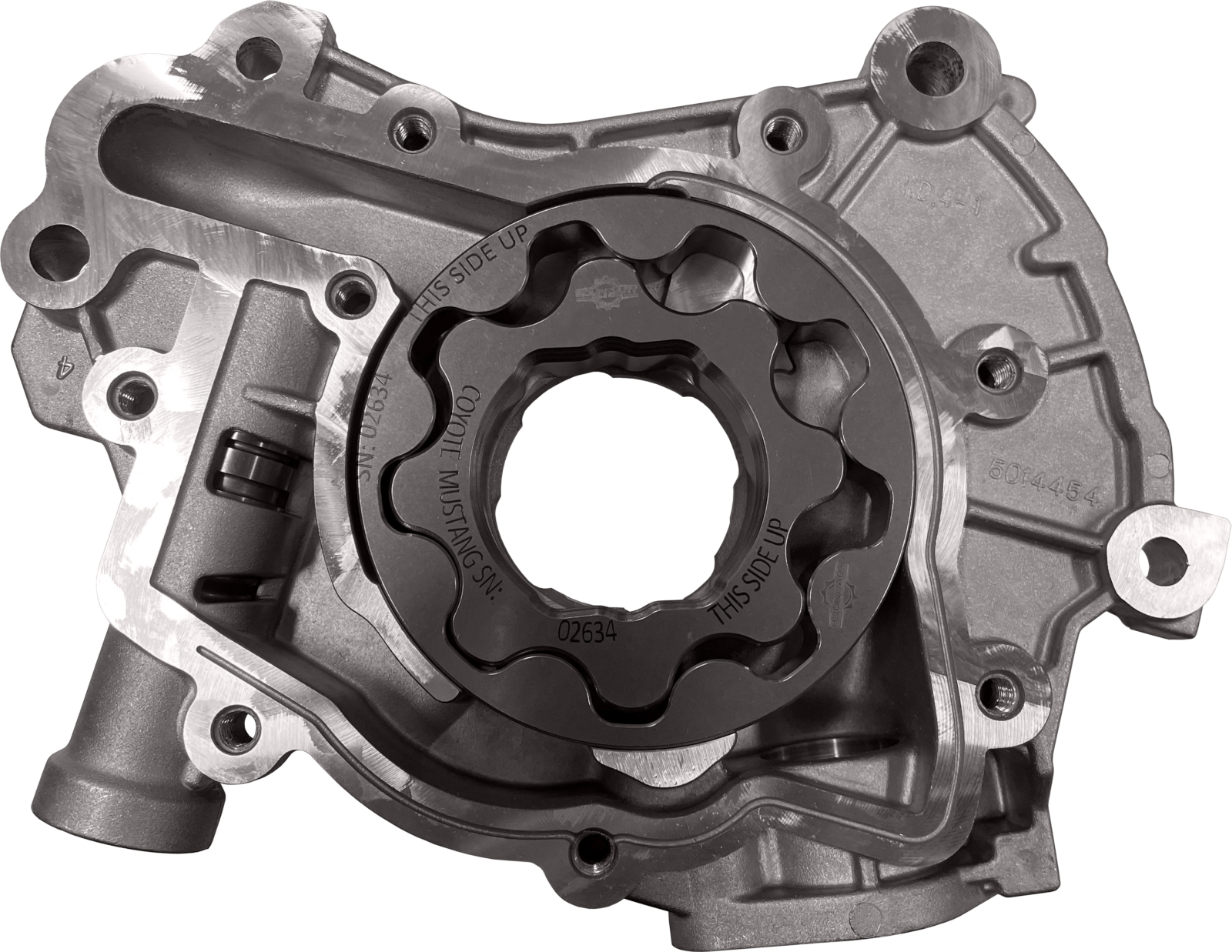

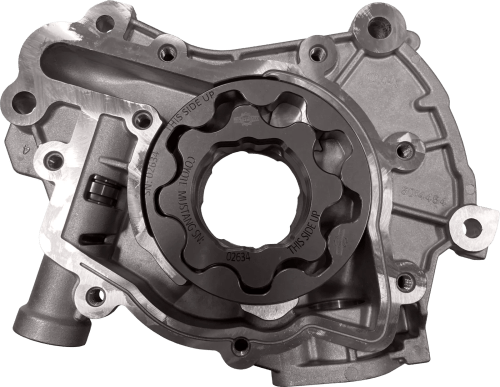

Coyote Oil Pump

The Coyote Motor oil pump is meticulously assembled with our premium billet oil pump gear, ensuring superior performance and durability. For enthusiasts pushing their engines beyond 7000 RPM, we offer a high-flow billet backplate option, providing enhanced oil flow and reliability.

All assembled billet pumps undergo the following:

1. Pump is thoroughly taken apart, and all parts undergo ultrasonic cleaning, air blast, and hand inspection.
2. Pump is hand de-burred.
3. Our industry-leading mirror-finished gear set is used
4. Stainless Torx heads replace the stock fasteners
5. All fasteners are torqued to spec
6. Loctite applied to fasteners to prevent back out or loosening
7. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
8. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
9. Parts are blue-printed and issued with a specification sheet.

Part Number: CM-S1 fits:

• F150 2011-2017
• MUSTANG 2011-2017

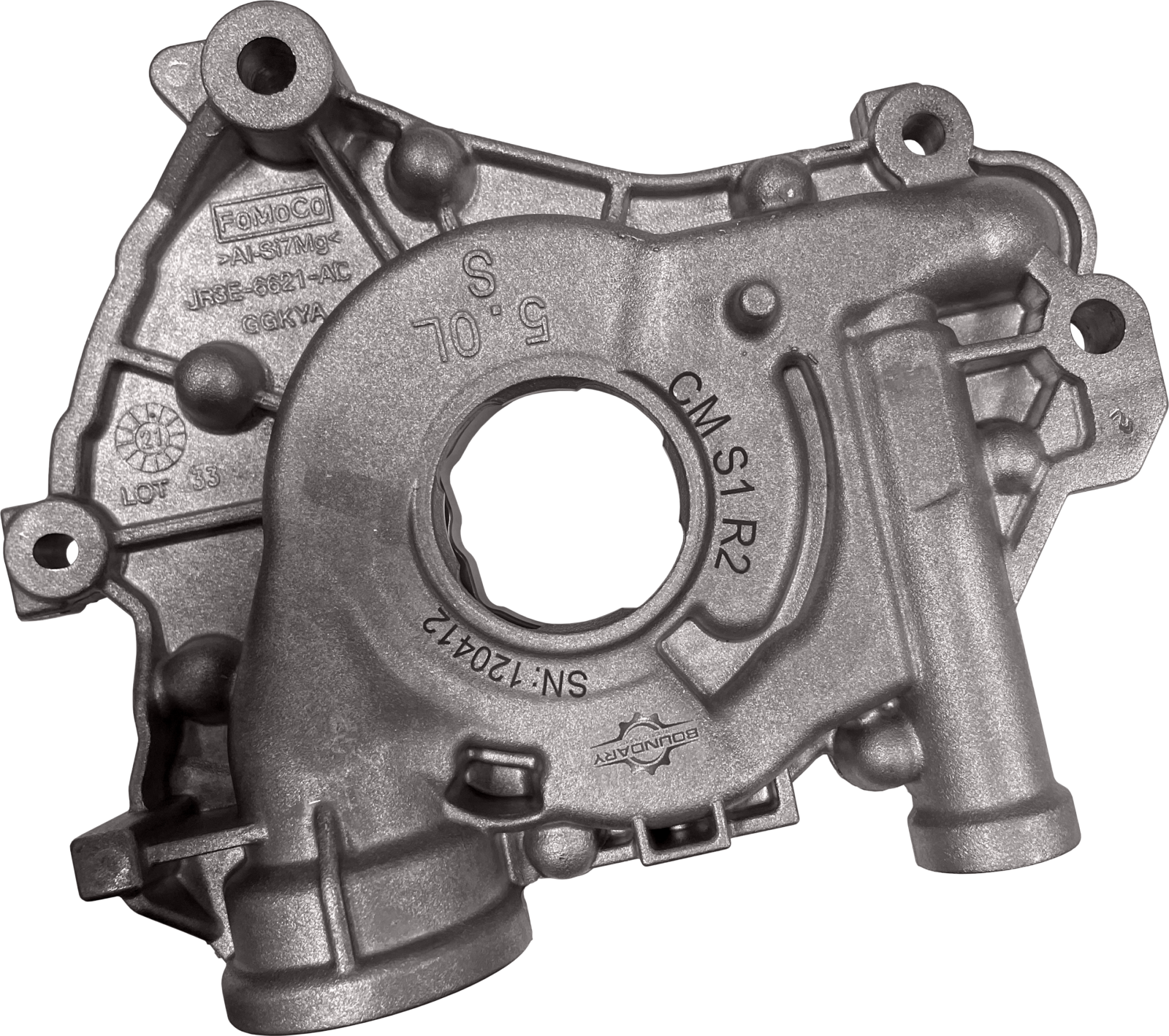

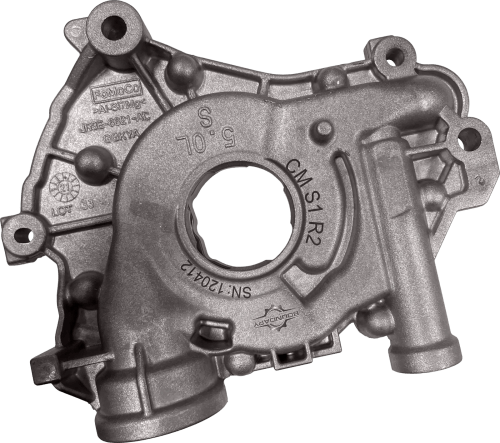

Part Number: CM-S1-R2 fits:

• Ford Shelby GT350 5.2L Voodoo 2015-2020
• MUSTANG 2018-2023
• F150 2018-2020

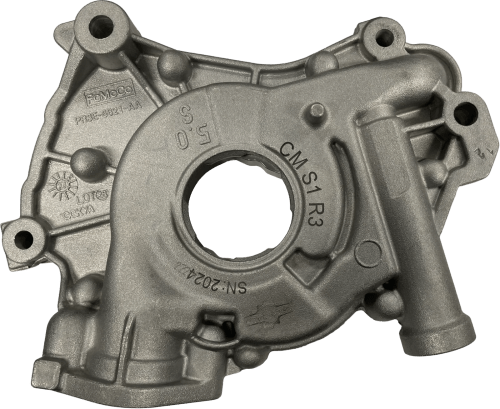

Part Number: CM-S1-R3 fits:

• Ford Coyote Mustang V8 5.0L ALL TYPES 2024-Present

*Note: The Ford F150 2021+ are belt driven*
