Raptor 6.2L Oil Pump Assembly


SKU: MM-RAPTOR-S1 Categories: , Tag:

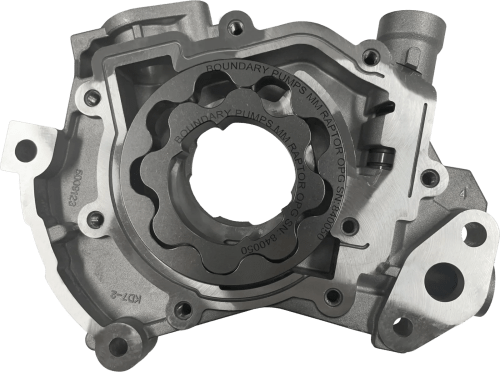

The Raptor Billet Oil Pump Assembly uses our proprietary race-prepared housing, fitted with our custom Billet Oil Pump Gears. We use our proprietary gerotor profile to produce more volume to safely deliver it beyond 10,000 RPM.

All Stage 1 pumps undergo the following:

  • All parts undergo ultrasonic, air blast, and hand inspection.
  • Pump is power hand de-burred inside and out.
  • Gear set is cut in-house from 4140 chromoly steel billet.
  • Parts are blue-printed and issued with specification sheet.

Boundary oil pump gears are 100% manufactured in our Dallas, Texas, production facility. We start by quenching our chromoly billets from extreme heat and then temper it to a tough indestructible core. After machining, we apply our ColdFlow surface hardening process and complete it to a Mirror Finish. What does all this give you? It gives you a pump with stability over 9000 RPM, proven in excess of 1500whp, with higher efficiency, less friction, and backed by one of the industry’s best warranties.

Oil Pump Gear Features

  • Mirror Finished and Surface Hardened
  • Surface Ground gears for the ultimate in fitment and performance
  • Indestructible core
  • Inner and outer gear set included
  • Unique race-inspired gerotor design
  • Each set hand, machine, and hardness inspected with Blueprinting Report

Part#MM-RAPTOR-S1 Fits:

  • Ford Raptor 6.2L 2011-2014

Additional information

Weight 4 lbs
Dimensions 10 × 6 × 3 in
