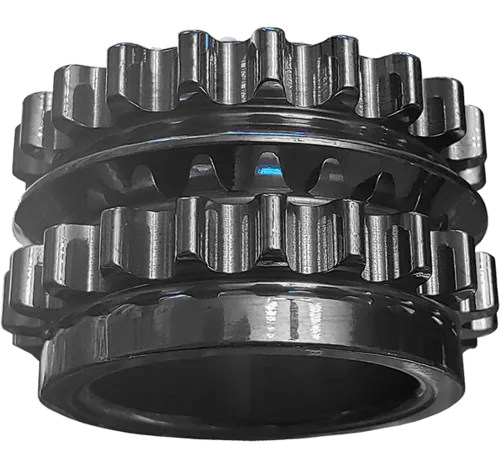

Boundary billet Coyote crankshaft timing sprocket

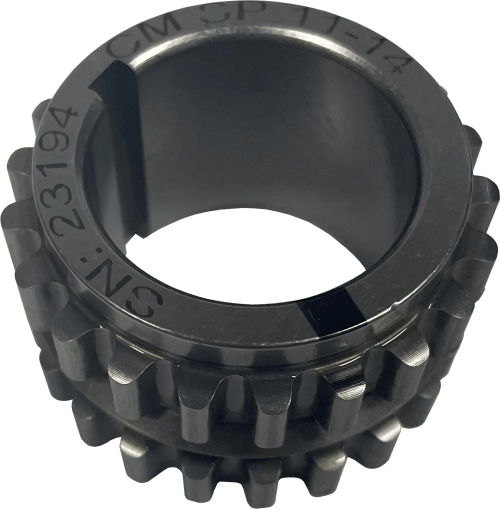

Boundary Coyote Crankshaft Timing Sprocket, side view
Boundary Coyote Crankshaft Timing Sprocket, side view

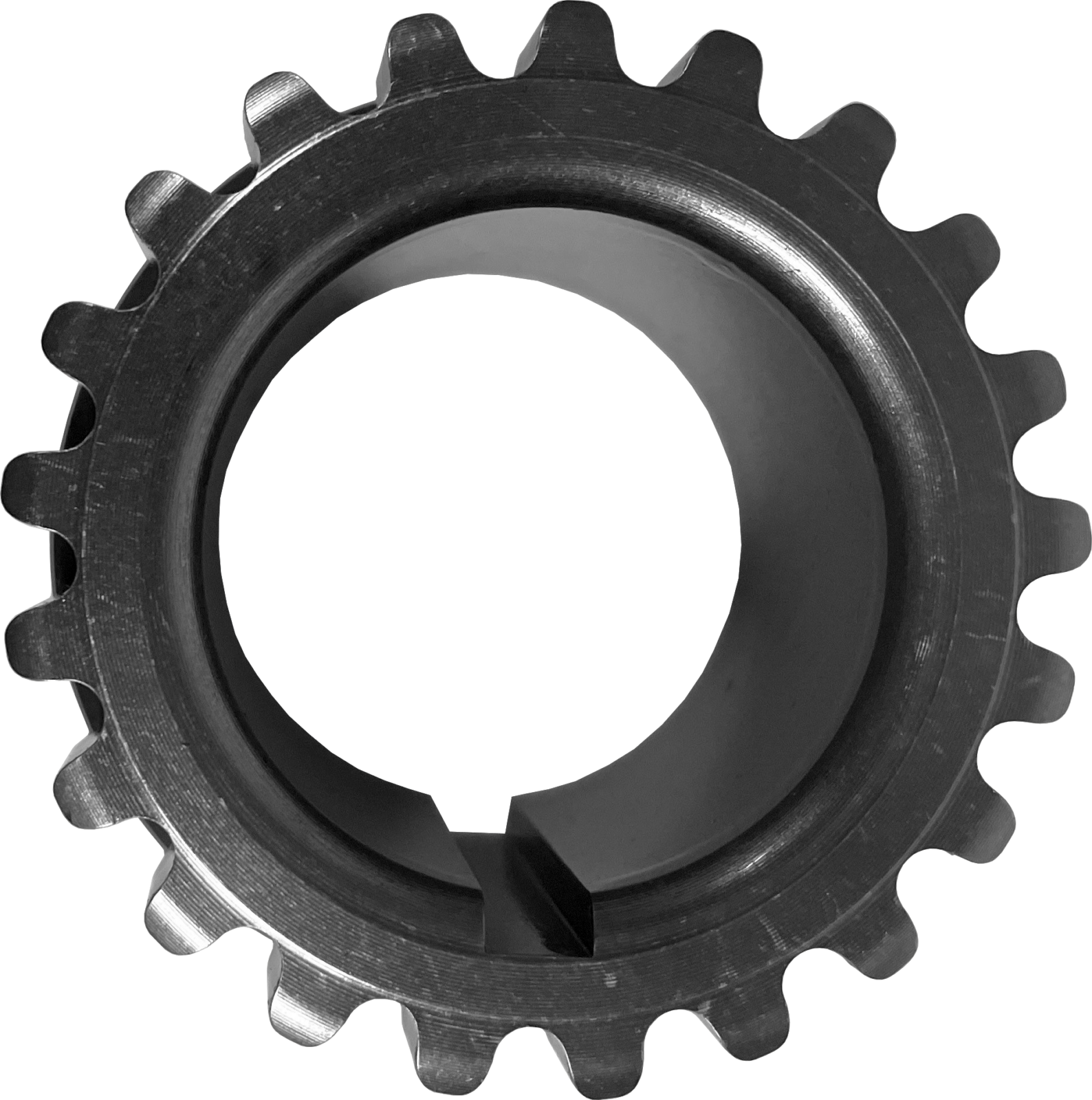

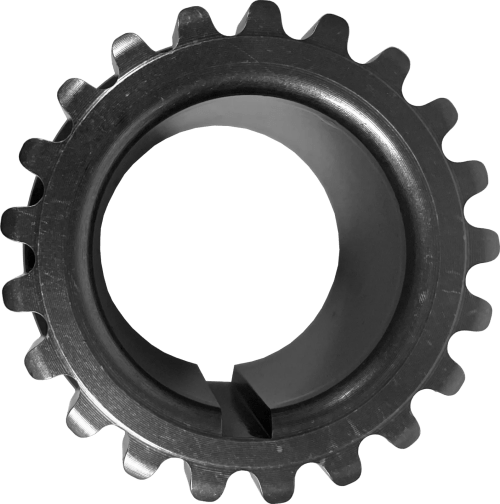

Boundary Coyote Crankshaft Timing Sprocket, rear view
Boundary Coyote Crankshaft Timing Sprocket, rear view
  1. Boundary billet Coyote crankshaft timing sprocket
  2. Boundary Coyote Crankshaft Timing Sprocket, side view
  3. Boundary Coyote Crankshaft Timing Sprocket, side view
  4. Boundary Coyote Crankshaft Timing Sprocket, rear view
  5. Boundary Coyote Crankshaft Timing Sprocket, rear view

Ford Coyote Crank Sprocket

From $129.00

  • Lifetime Warranty
  • Machined in the USA
  • 2 US Patents

A billet crank sprocket for the Ford Coyote, CNC-machined and broached in-house from Chromoly steel about ten times stronger than the OEM powdered metal. With 80% more cross-section at the keyway and heat-treated to maximum hardness, it replaces the weak factory sprocket. Machined in Royse City, TX.

Secure checkout — Stripe & PayPal, SSL-encrypted

SKU: CM-SP Categories: , , , Tags: ,

Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with a chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

  • All sprockets heat treated to maximum hardness while maintaining toughness
  • Precision CNC machined and broached for snug accurate fit
  • Dimensions checked after machining and after heat treatment for guaranteed fit.
  • 80% more cross-section versus OEM at the keyway
  • Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
  • High finish reduces friction and chain vibration
  • New tooth geometry strengthens teeth and keyway

Part Number: CM-SP-11 FITS:

  • ALL FORD COYOTE 2011-2014

Part Number: CM-SP-15 FITS:

  • ALL FORD COYOTE 2015-UP

LARGE RADIUS (LR) FITS: Windberg, Callies, and other crankshafts with large nose radius.



Weight 0.4 lbs
Dimensions 3 × 3 × 3 in
