Ford Coyote V8 Pump Assembly – Billet Gear Vane Ported MartenWear Treated Billet Steel Back Plate


SKU: CM-S2 Categories: , , Tag:

The Coyote Motor oil pump starts with the Ford OEM housing and gets fitted with all the strongest, highest-flowing hardware possible.

All assembled billet pumps undergo the following:

  1. The pump is thoroughly taken apart; all parts undergo ultrasonic cleaning, air blast, and hand inspection.
  2. The pump is hand de-burred.
  3. Our industry-leading mirror-finished gear set is used

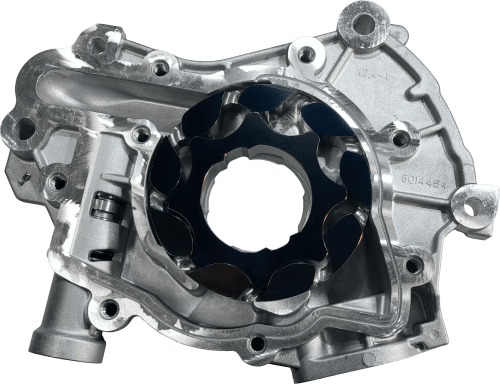

  4. It is assembled with our Black Series ported gerotor with dual-stage heat treatment

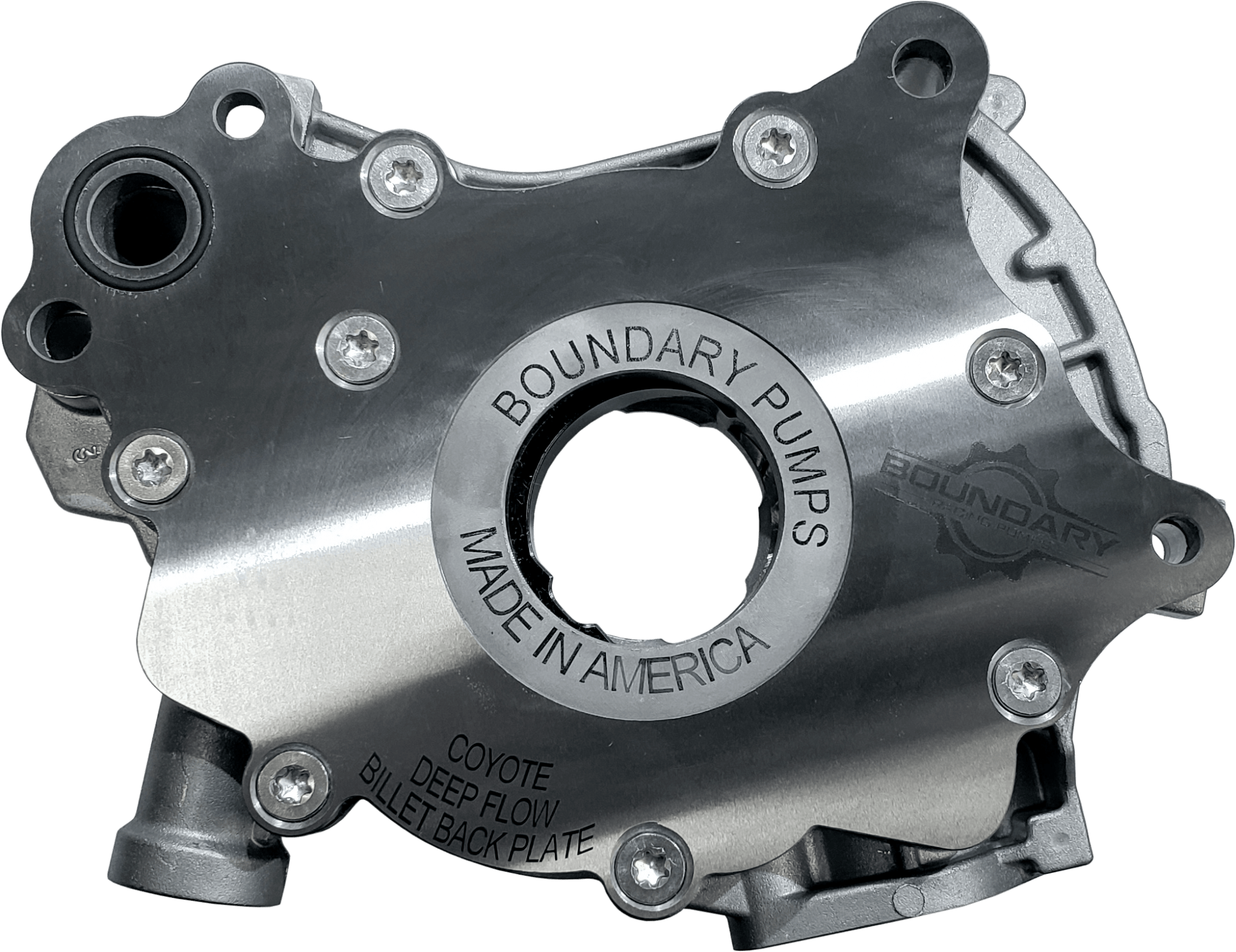

  5. When closing the pump up, we use our Billet Steel Anti-Cavitation oil pump cover
  6. Stainless Torx heads replace the stock fasteners
  7. All fasteners are torqued to spec
  8. Loctite is applied to fasteners to prevent back out or loosening
  9. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  10. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
  11. Parts are blueprinted and issued with a specification sheet.

Part Number CM-S2 fits:

  • F150 2011-2017
  • MUSTANG 2011-2017

Part Number CM-S2-R2 fits:

  • GT350 2015-UP
  • MUSTANG 2018-UP
  • F150 2018-2020

Part Number CM-S2-R3 fits:

  • Coyote Mustang 5.0L ALL TYPES 2023-Present
Weight 4.5 lbs
Dimensions 10 × 6 × 3 in
