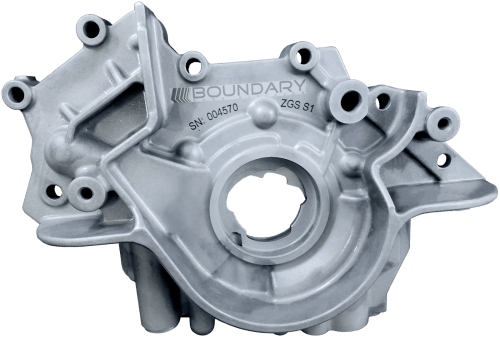

Boundary billet oil pump assembly for the Ford Zetec

Ford Zetec Oil Pump Assembly – Stage 1

From $379.00

  • Lifetime Warranty
  • Machined in the USA
  • 2 US Patents

A Stage 1 oil pump for the Ford Zetec, built on our race-prepared housing with a gerotor profile that produces about 30% more volume, validated for high-output builds. The gearset is cut in-house with ColdFlow surfaces and high-quenched, tempered Chromoly cores. Made in the USA, lifetime warranty.

Secure checkout — Stripe & PayPal, SSL-encrypted

SKU: ZGS-S1 Categories: , Tag:

The Ford Zetec Billet Oil Pump Assembly uses our proprietary race-prepared housing which is fitted with our custom Billet Oil Pump Gears. We use our proprietary gerotor profile to produce 30% more volume and safely deliver it at up to 9000 RPM and over 800WHP.

All assembled billet pumps undergo the following:

  • Pump is completely taken apart, all parts undergo ultrasonic cleaning, air blast, and hand inspection.
  • Pump is hand de-burred.
  • Gear set is cut in-house and features our ColdFlow surfaces and high-quenched and tempered chromoly cores.
  • Stainless Torx heads replace the OEM mild steel fasteners
  • All fasteners are torqued to spec
  • Loctite applied to fasteners to prevent backout or loosening
  • Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  • Assembly lubricant applied to all critical surfaces to ensure fast initial pump up and lubricity on start.
  • Parts are blue-printed and issued with a specification sheet.

Part Number ZGS-S1 Fits:

  • FORD FOCUS 2.0L 1998-2004
  • FORD ESCORT 2.0L 1998-2004
  • FORD COUGAR 2.0L 1998-2002
Weight 4 lbs
Dimensions 10 × 6 × 3.5 in
Treatment

Standard Heat Treat, MartenWear Treatment
