Ford GT500 Crank Sprocket (2007-2014)
$149.00
- Lifetime Warranty
- Machined in the USA
- 2 US Patents

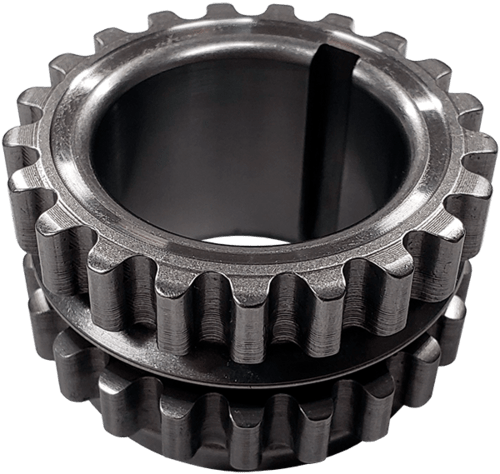

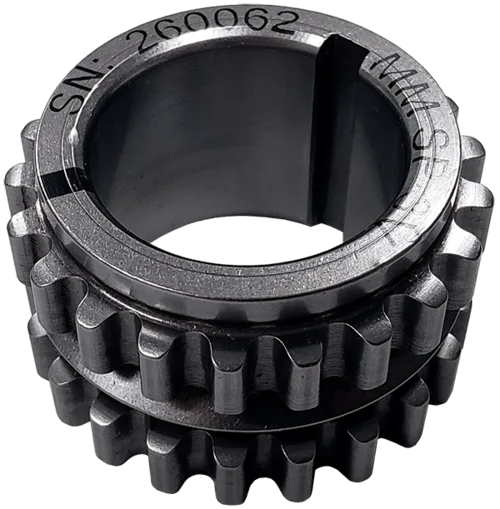

A billet crank sprocket for the Ford GT500 5.4L Modular (2007-2014), CNC-machined and broached in-house from Chromoly steel about ten times stronger than the OEM powdered metal. With 80% more cross-section at the keyway, it replaces the fragile factory sprocket. Machined in Royse City, TX.
Secure checkout — Stripe & PayPal, SSL-encrypted
Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with chromoly steel that is 10 times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.
-
All sprockets heat treated to maximum hardness while maintaining toughness
-
Precision CNC machined and broached for snug accurate fit
-
Dimensions checked after machining and after heat treatment for guaranteed fit.
-
80% more cross-section versus OEM at the keyway
-
Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
-
High finish reduces friction and chain vibration
-
New tooth geometry strengthens teeth and keyway
Part Number MM-SP-GT500 Fits:
- Ford Shelby GT500 2007-2014
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
