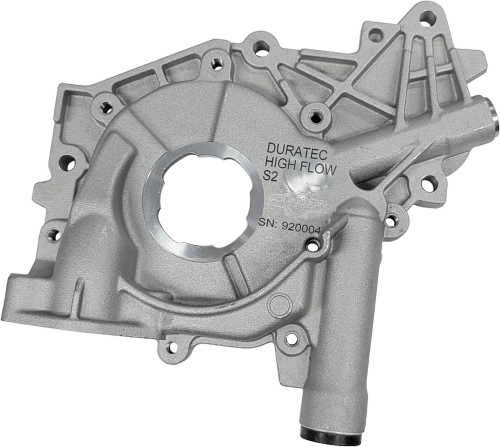

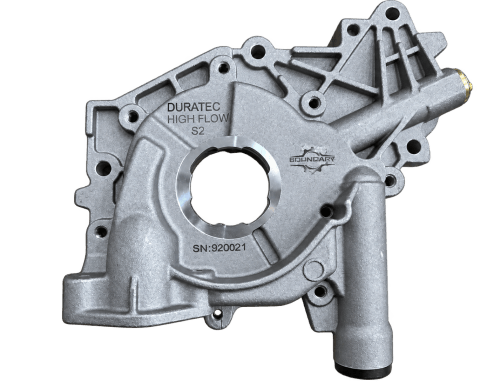

Ford Duratec Pump Assembly – High Flow Billet Gear


SKU: D30-S2 Categories: , Tag:

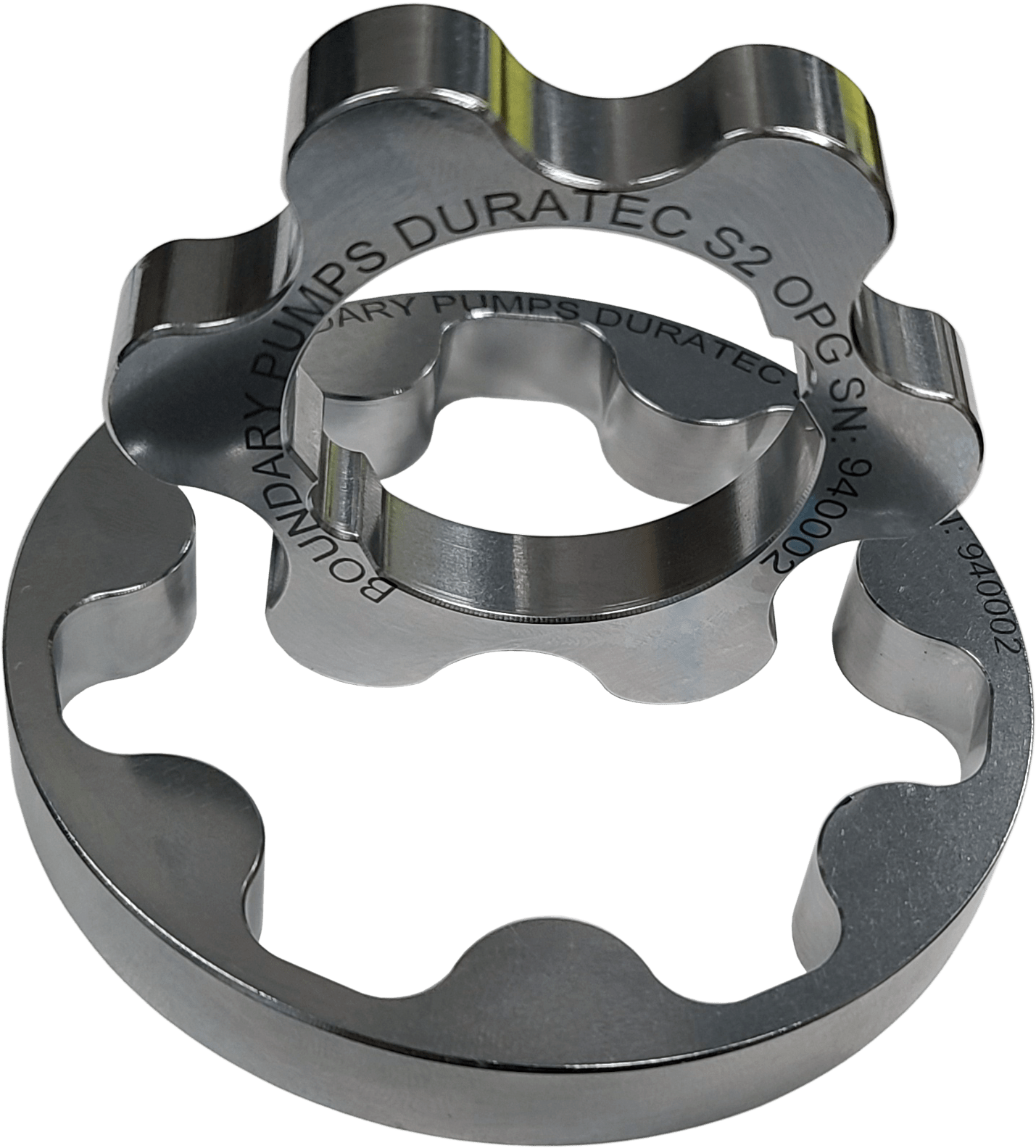

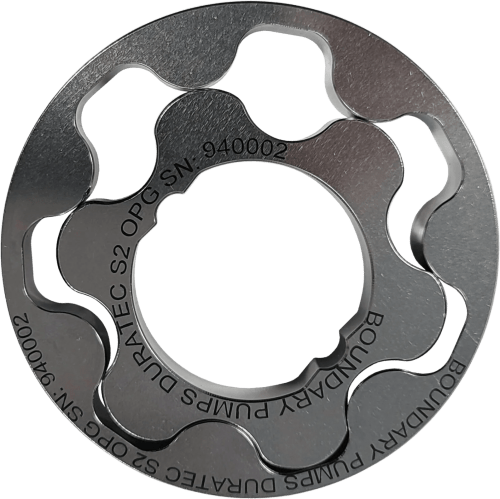

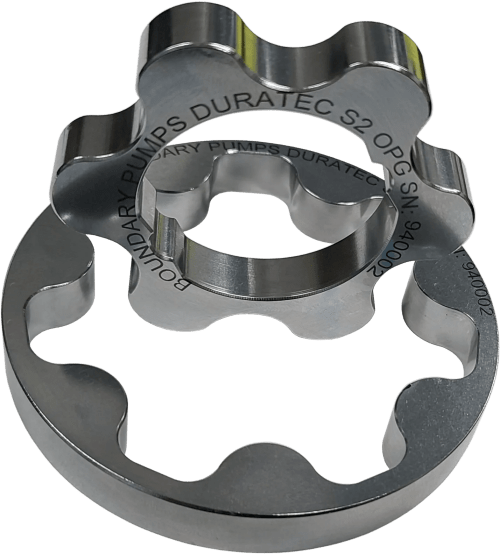

This is the highest-flow Duratec pump available. The pump features an increased maximum pressure as well as custom billet oil pump gears for ultimate durability.

All assembled billet pumps undergo the following:

  1. Pump is thoroughly taken apart, and all parts undergo ultrasonic cleaning, air blast, and hand inspection.
  2. Pump is hand de-burred.
  3. Our industry-leading mirror-finished gear set is used
  4. Stainless Torx heads replace the stock fasteners
  5. All fasteners are torqued to spec
  6. Loctite applied to fasteners to prevent back out or loosening
  7. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  8. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
  9. Parts are blue-printed and issued with a specification sheet.

Part Number D30-S2 FITS:

  • Ford Duratec V6 2.5L/ 3.0L 93-12
Weight 3 lbs
Dimensions 10 × 6 × 3 in

No Treatment, MartenWear Treatment
