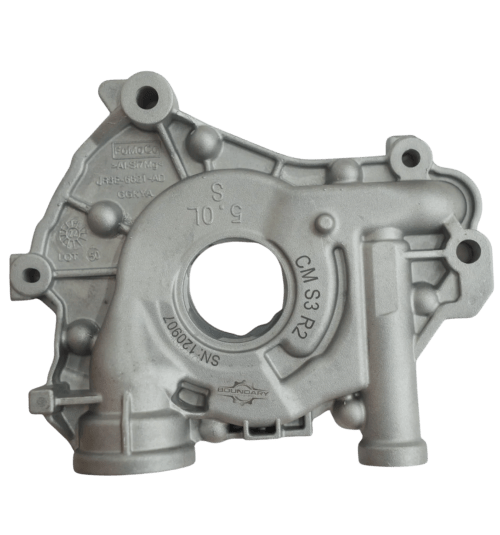

The Coyote Motor oil pump starts with the Ford OEM housing and gets fitted with all the strongest, highest-flowing hardware possible.

All assembled billet pumps undergo the following:

1. The pump is thoroughly taken apart; all parts undergo ultrasonic cleaning, air blast, and hand inspection.
2. The pump is hand de-burred.
3. Our industry-leading mirror-finished gear set is used
4. It is assembled with our NEW DUAL ROTAR DESIGNED gerotor with dual-stage heat treatment

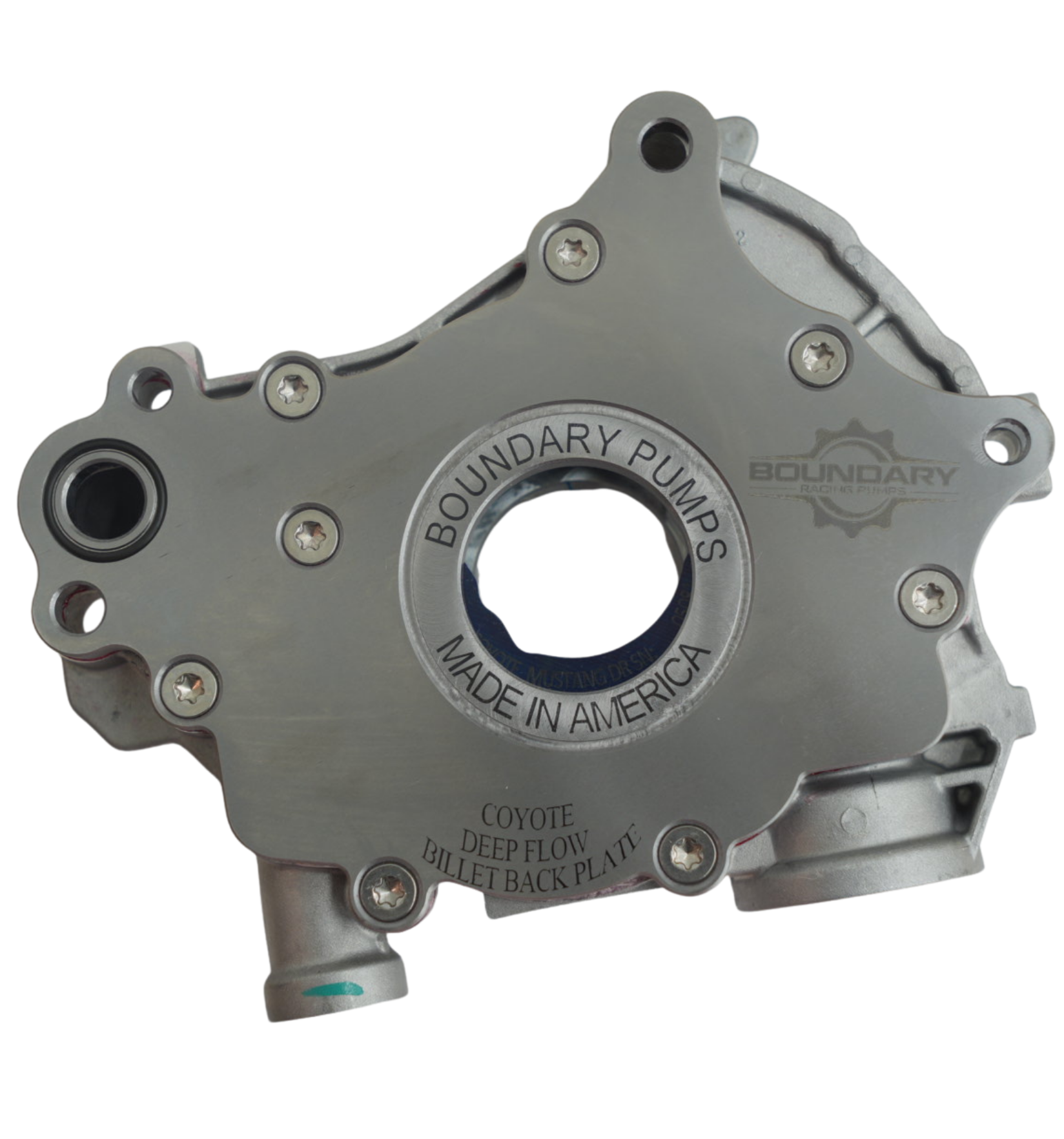

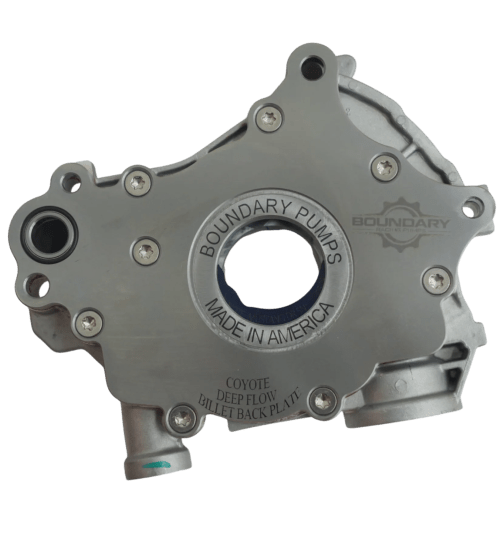

5. When closing the pump up, we use our Billet Steel Anti-Cavitation oil pump cover
6. Stainless Torx heads replace the stock fasteners
7. All fasteners are torqued to spec
8. Loctite is applied to fasteners to prevent back out or loosening
9. Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
10. Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
11. Parts are blueprinted and issued with a specification sheet.

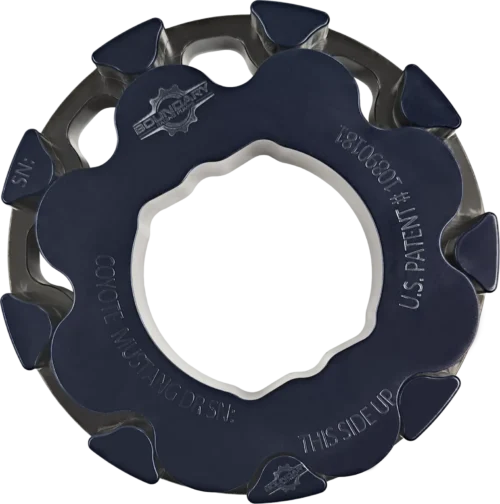

Our new dual-rotor design will keep your engine performing even under the worst and most punishing race conditions. These gears produce more pressure and flow at all RPMs than OEM style or any other gear produced for the Coyote platform. It combines several technologies, including the Martenwear Dual Heat Treatment, Vane Porting, and the newest addition, the Dual Rotor Design. The dual rotor creates two distinct pumps in one to maximize both flow and pressure across the RPM range.

This new gear has the following features:

1. The most pressure and flow of any gear on the market
   1. Increased VVT stability
   2. Decrease temperatures at the bearing
   3. Increase idle and midrange pressure even with loose clearances and high oil temperatures
2. MartenWear
   1. Increased durability for proven gear stability to 18,000 RPM
3. Vane Porting
   1. Increased flow area for decreased cavitation at high RPM.

Part Number CM-S3 fits:

• F150 2011-2017
• MUSTANG 2011-2017

Part Number CM-S3-R2 fits:

• GT350 2015-UP
• MUSTANG 2018-UP
• F150 2018-2020

Part Number CM-S3-R3 fits:

• Coyote Mustang 5.0L ALL TYPES 2024-Present
