VQ VHR Billet Oil Pump Assembly


SKU: VQ-S1-VHR Categories: , , Tag:

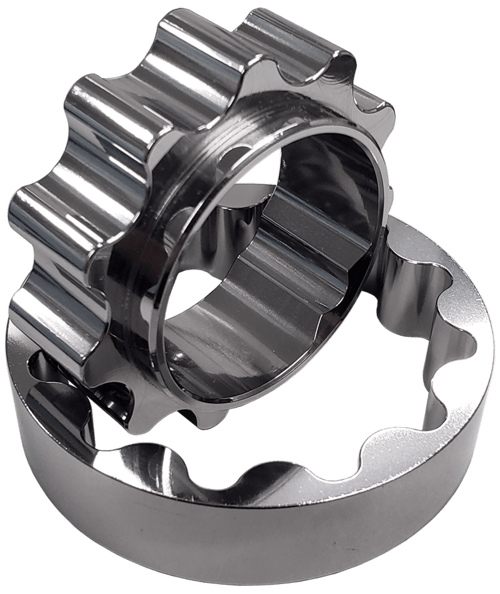

The VQ VHR oil pump starts with the Nissan OEM housing, but is assembled with our mirror finished billet oil pump gear. This pump also comes with the option for a high-flow billet backplate for those running over 7000 RPM consistently. This pump has been validated in multiple extreme horsepower naturally aspirated and turbocharged applications. It has been used in the world record-holding naturally aspirated 1/4 mile car of Darren Suratt’s at 8000 RPM, and in an 8500 RPM 900WHP supercharged VHR.

This unit also comes with a preference for relief valve settings for high RPM pressure.

All assembled billet pumps undergo the following:

  • Pump is completely taken apart, all parts undergo ultrasonic cleaning, air blast, and hand inspection.
  • Pump is hand de-burred.
  • Our industry-leading mirror finished gear set is used
  • Stainless Torx heads replace the stock fasteners
  • All fasteners are torqued to spec
  • Loctite applied to fasteners to prevent back out or loosening
  • Anaerobic sealant applied to critical areas to boost pump up speed and reduce aeration.
  • Assembly lubricant applied to all critical surfaces to get oil flowing fast on startup
  • Parts are blue-printed and issued with a specification sheet.


  • 1 Shim +10 PSI
  • 2 Shim +20 PSI
  • 3 Shim +30 PSI

Part Number VQ-S1-VHR Fits:

  • NISSAN 370Z 2009 – UP
  • INFINITI F\G\FX\EX\M 37 2009 – UP
  • NISSAN SKYLINE 2007-2008
  • NISSAN 350Z 2007-2008
  • NISSAN FUGA 350 GT 2006-2008
  • INFINITI G35 2007-2008

Additional information

Weight 3 lbs
Dimensions 10 × 6 × 3 in
